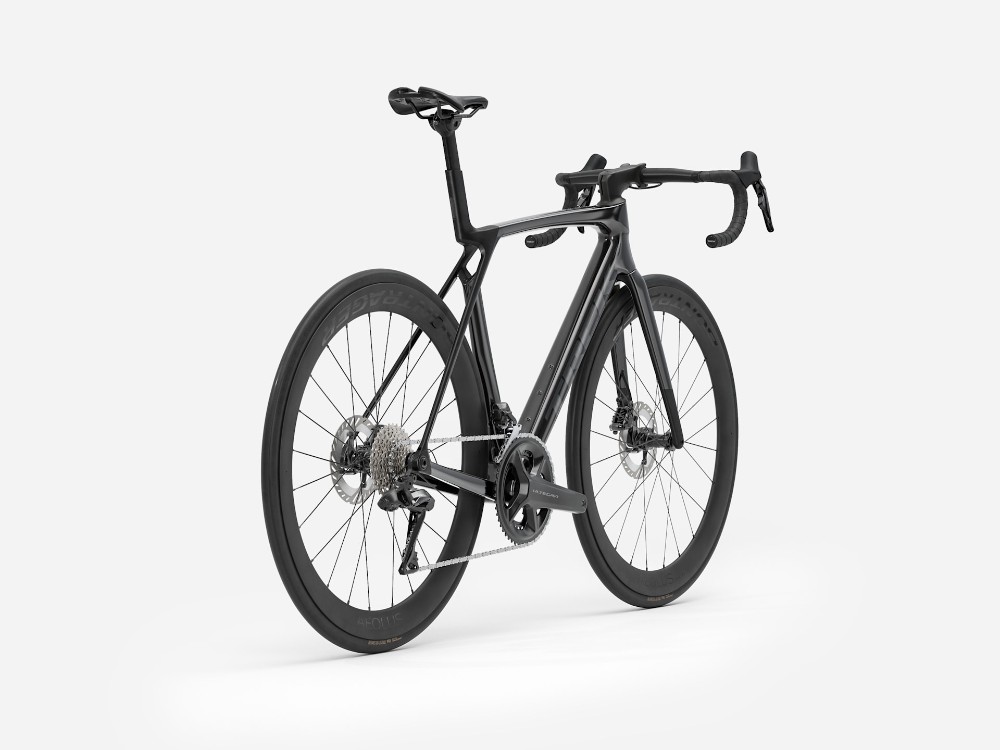

Trek Madone SL 7 Gen 8 2026 - Road Bike
The Madone SL 7 Gen 8 delivers race-inspired speed in a refined, rideable package. A lightweight carbon frame, clean aero shaping and wireless Ultegra Di2 come together for confident climbing, smooth descending and efficient cruising.
Key Features:
- Frame: 500 Series OCLV Carbon with aero geometry and IsoFlow seat tube
- Fork: Madone Gen 8 full carbon fork with tapered carbon steerer
- Drivetrain: Shimano Ultegra Di2 R8150/R8170 12-speed electronic shifting
- Brakes: Shimano Ultegra hydraulic disc brakes, flat mount
- Wheels: Bontrager Aeolus Pro 51 carbon wheels with Bontrager R3 tyres
- Stand-out: Full carbon cockpit for a clean, lightweight front end
- Finance: Available with 0% APR finance
The Madone SL 7 Gen 8 uses Trek’s 500 Series OCLV Carbon, shaped with Full System Foil tube profiles to reduce drag without sacrificing ride quality. The geometry balances efficiency and control, making it equally at home on long climbs, rolling roads and fast descents.
IsoFlow technology decouples the seat tube from the top tube, allowing controlled flex that smooths road buzz while keeping power transfer direct. The aero carbon seatpost works with the frame to maintain comfort over long distances without dulling the bike’s sharp feel.
Shimano Ultegra Di2 provides precise, reliable electronic shifting with a wide 50/34 chainset and 11–34 cassette. Shifts are quick and consistent under load, helping you stay in rhythm whether you’re climbing or pushing the pace on the flat.
Rolling duties are handled by Bontrager Aeolus Pro 51 carbon wheels. Their depth offers aerodynamic efficiency while remaining stable in mixed conditions, paired with 28mm Bontrager R3 tyres for a good balance of speed and comfort.

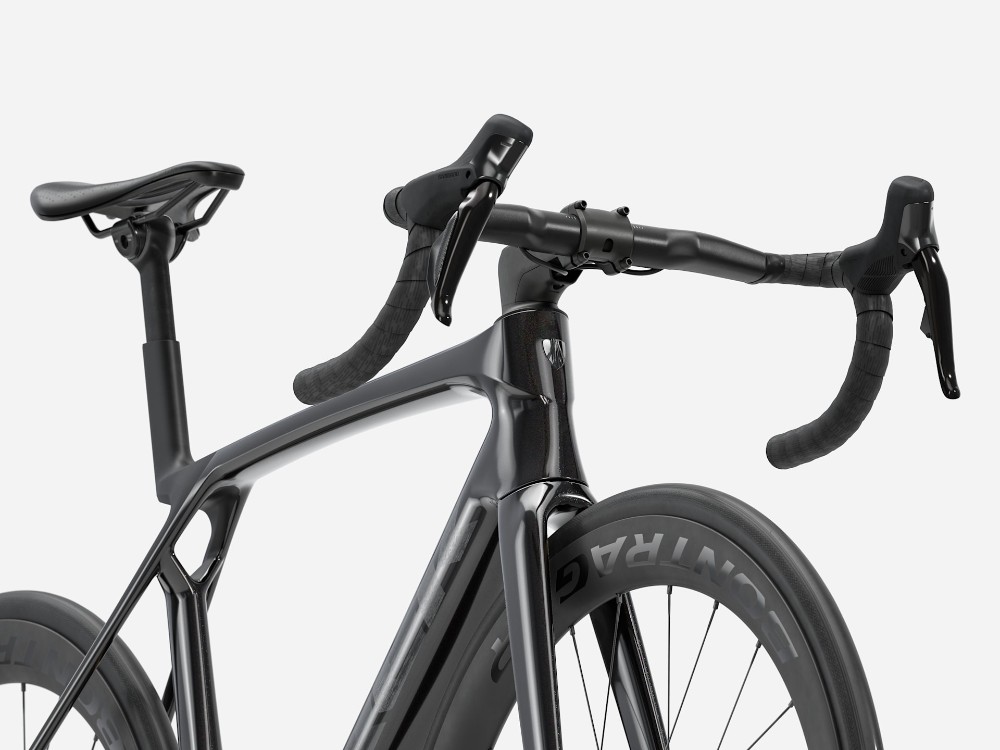

A full carbon front end, with Bontrager Aero Pro bars and Trek RCS Pro stem, keeps weight down and cable routing clean. The result is a road bike that feels fast, composed and ready for big rides, without demanding race-only compromises.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | 500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle |
| Fork | Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru axle |
| Stem | Trek RCS Pro, -7-degree |
| Bars | Bontrager Aero Pro, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop |
| Front Mech | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Mech | Shimano Ultegra R8150 Di2, 34T max cog |
| Shifters | Shimano Ultegra R8170 Di2, 12-speed |
| Speed | 24 |
| Rims | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready |
| Front Hub | 100x12 mm thru axle |
| Rear Hub | Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Front Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| Rear Tyre | Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm |
| Seat Post | Madone aero carbon seat post, 0 mm offset, short length |
| Saddle | Bontrager Aeolus Elite, austenite rails, 145 mm width |
| Chainset | Shimano Ultegra R8100, 50/34 |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Chain | Shimano XT M8100, 12-speed |
| Cassette | Shimano Ultegra R8101, 11-34, 12-speed |
Trek Madone Gen 8 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| XS (47cm) | 143 - 158 cm | 4'8" - 5'2" | 67 - 74 cm | 26" - 29" |
| S (50cm) | 158 - 162 cm | 5'2" - 5'4" | 74 - 76 cm | 29" - 30" |
| M (52-54cm) | 162 - 173 cm | 5'4" - 5'8" | 76 - 81 cm | 30" - 32" |
| ML (56cm) | 173 - 179 cm | 5'8" - 5'10" | 81 - 84 cm | 32" - 33" |
| L (58cm) | 179 - 188 cm | 5'10" - 6'2" | 84 - 88 cm | 33" - 35" |
| XL (60-62cm) | 188 - 213 cm | 6'2" - 7'0" | 88 - 100 cm | 35" - 39" |
What size frame do I need if I am between sizes? - read here
Trek Madone Gen 8 Geometry Chart
| Size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Stack | 507 | 530 | 546 | 562 | 582 | 610 |
| Reach | 370 | 378 | 384 | 389 | 394 | 402 |
| Head Tube Length | 100 | 121 | 136 | 150 | 172 | 201 |
| Head Tube Angle | 71.6° | 72.2° | 72.9° | 73.5° | 73.8° | 73.9° |
| Bottom Bracket Drop | 72 | 72 | 70 | 70 | 68 | 68 |
| Trail | 61 | 62 | 58 | 59 | 57 | 57 |
| Fork Rake/Offset | 50 | 45 | 45 | 40 | 40 | 40 |
| Chainstay Length | 410 | 410 | 410 | 410 | 411 | 412 |
| Wheelbase | 971 | 976 | 981 | 980 | 990 | 1007 |
| Top Tube Length (horizontal) | 517 | 532 | 545 | 557 | 568 | 584 |
| Standover Height | 704 | 734 | 762 | 790 | 820 | 863 |
| Seat Tube Length | 404 | 440 | 476 | 512 | 548 | 609 |
| Seat Tube Angle | 73.8° | 73.8° | 73.6° | 73.4° | 73.4° | 73.4° |
| Saddle rail height min (w/short mast) | 549 | 585 | 621 | 657 | 693 | 754 |
| Saddle rail height max (w/short mast) | 612 | 648 | 684 | 720 | 756 | 817 |
| Saddle rail height min (w/tall mast) | 592 | 628 | 664 | 700 | 736 | 797 |
| Saddle rail height max (w/tall mast) | 654 | 690 | 726 | 762 | 798 | 859 |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
