Trek Fuel EXe 8 GX AXS T-Type 2025 - Electric Mountain Bike
The Fuel EXe 8 GX AXS T-Type delivers a natural-feeling e-MTB ride with TQ drive tech, wireless SRAM shifting, plush FOX suspension and a robust alloy frame ready to take on demanding trails.
Key Features
- Alpha Platinum Aluminium frame with 140 mm travel and Mino Link adjustable geometry
- FOX Rhythm 36 fork with 150 mm travel and GRIP damper
- FOX Performance Float X rear shock with 140 mm travel
- SRAM GX Eagle AXS T-Type 12-speed wireless drivetrain
- SRAM DB8 4-piston hydraulic disc brakes for trail control
- 29" Bontrager Line Comp 30 wheels with XR5 2.5" tyres
- Integrated top-tube display, removable battery, wireless controls
- Available with 0% APR finance
Drive Information
- TQ-HPR50 motor delivering 50 Nm of smooth torque
- Integrated 360 Wh removable battery for confident range
- TQ LED display with Bluetooth & ANT+ and sleek remote control
The Trek Fuel EXe 8 GX AXS T-Type redefines what a trail e-MTB can be, offering a lightweight, quiet and agile ride that feels like your favourite analogue bike – just with a touch more power when you want it. Built around a rugged Alpha Platinum Aluminium chassis, the frame packs 140 mm of rear travel, using Trek’s proven ABP suspension and Mino Link geometry adjust system. Whether you're tackling steep tech or flat-out descents, you can dial the ride to match your style.
At the heart of this machine is the near-silent TQ-HPR50 motor, delivering up to 50 Nm of torque. It’s lightweight, compact and designed to complement rather than dominate your ride. Power delivery is smooth and intuitive, letting you tackle big climbs without losing that all-important trail connection. The fully integrated 360 Wh battery keeps the bike looking sleek while offering great range for trail sessions, and it’s easily removable for convenient charging.
Up front, a FOX Rhythm 36 fork with 150 mm travel and GRIP damper keeps control locked in through rough rock gardens and rooty trails. At the rear, a FOX Performance Float X shock soaks up the hits while providing plenty of mid-stroke support for pumping and popping your way down.
Gear shifts are handled wirelessly by the latest SRAM GX Eagle AXS T-Type drivetrain – smooth, lightning-fast and extremely tough, perfect for those rough and ready trails. Paired with a 12-speed 10-52T cassette, you've got all the range you need to conquer big climbs and hammer along the flats.
Stopping power comes courtesy of SRAM DB8 4-piston brakes, offering strong, controlled braking even when things get steep and loose. And rolling on 29" Bontrager Line Comp 30 wheels wrapped in aggressive XR5 Team Issue 2.5" tyres, you’ll enjoy maximum grip and a confident ride feel straight from the box.

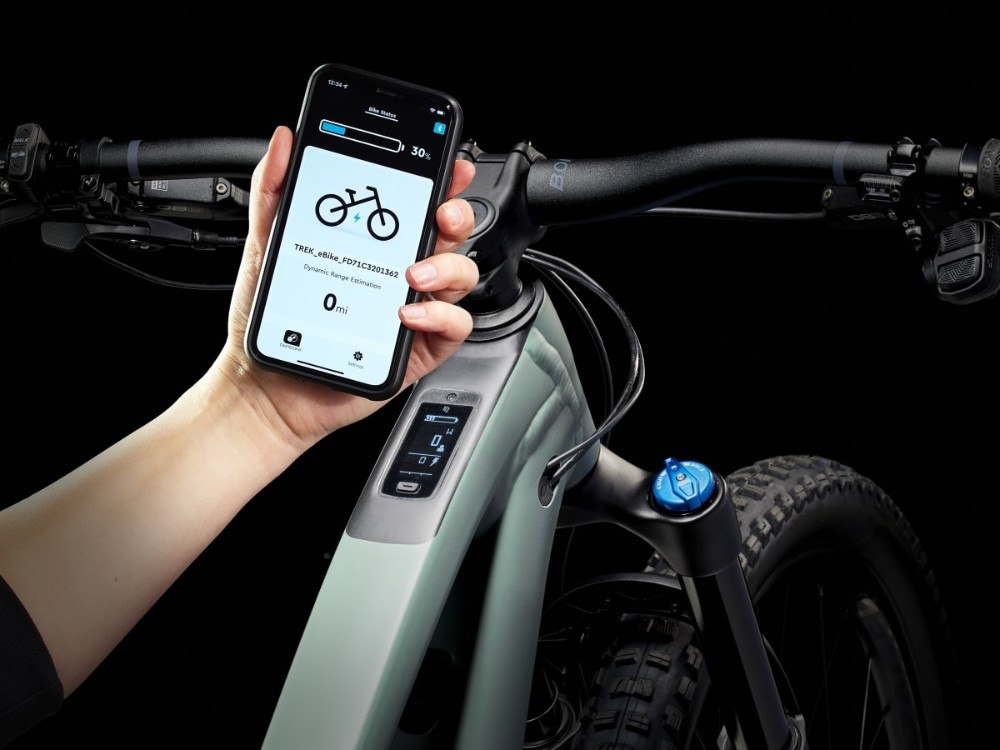

Trek’s integrated TQ LED display and handlebar remote keep things clean and intuitive, offering Bluetooth and ANT+ connectivity for ride tracking or pairing with third-party devices.
For riders who want a modern e-MTB with proper trail manners, leading-edge wireless tech, and stealthy e-assist performance, the Fuel EXe 8 GX AXS T-Type delivers the goods without the eye-watering price tag.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel |
| Rear Shock | Fox Performance Float X, 2-position damper, 205 mm x 60 mm |
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
| Bars | Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width |
| Front Brake | SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc |
| Rear Brake | SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc |
| Rear Mech | SRAM GX Eagle AXS, T-Type |
| Shifters | SRAM AXS Pod |
| Speed | 12 |
| Rims | Bontrager Line Comp 30 |
| Front Hub | Bontrager Line Comp 30 |
| Rear Hub | Bontrager Line Comp 30 |
| Front Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Rear Tyre | Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50" |
| Seat Post | TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
| Chainset | SRAM GX, 165 mm length |
| Chain | SRAM GX Eagle, T-Type, 12-speed |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12-speed |
| Battery Size (WH) | TQ 360Wh |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| User Interface | TQ LED display with Bluetooth & ANT+ connectivity |
Trek Fuel EXe 2025 Size Chart
| Size | Height cm | Height Feet / Inches | Inseam cm | Inseam Inches |
|---|---|---|---|---|
| S | 155 - 165 cm | 5'1" - 5'5" | 74 - 78 cm | 29" - 31" |
| M | 165 - 177 cm | 5'5" - 5'10" | 79 - 83 cm | 31" - 33" |
| L | 177 - 188 cm | 5'10" - 6'2" | 84 - 89 cm | 33" - 35" |
| XL | 188 - 195 cm | 6'2" - 6'5" | 89 - 91 cm | 35" - 36" |
What size frame do I need if I am between sizes? - read here
Trek Fuel Exe 2025 Geometry Chart
| Size | S | M | L | XL | ||||
|---|---|---|---|---|---|---|---|---|
| High | Low | High | Low | High | Low | High | Low | |
| Stack | 616 | 620 | 625 | 629 | 625 | 629 | 634 | 638 |
| Reach | 434 | 428 | 459 | 453 | 489 | 483 | 514 | 508 |
| Head Tube Length | 100 | 100 | 110 | 110 | 110 | 110 | 120 | 120 |
| Head Tube Angle | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° | 65.3° | 64.8° |
| Bottom Bracket Height | 341 | 334 | 341 | 334 | 341 | 334 | 341 | 334 |
| Bottom Bracket Drop | 32 | 39 | 32 | 39 | 32 | 39 | 32 | 39 |
| Trail | 124 | 127 | 124 | 127 | 124 | 127 | 124 | 127 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Chainstay Length | 438 | 440 | 438 | 440 | 438 | 440 | 438 | 440 |
| Wheelbase | 1187 | 1188 | 1216 | 1217 | 1246 | 1247 | 1276 | 1276 |
| Top Tube Length (horizontal) | 572 | 573 | 599 | 600 | 629 | 630 | 656 | 658 |
| Standover Height | 732 | 726 | 733 | 727 | 739 | 733 | 759 | 753 |
| Seat Tube Length | 380 | 380 | 410 | 410 | 435 | 435 | 470 | 470 |
| Seat Tube Angle | 69.3° | 68.8° | 69.8° | 69.3° | 70.8° | 70.3° | 71.3° | 70.8° |
| Effective Seat Tube Angle | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° | 77.3° | 76.8° |
| Wheel size | 29" | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
