(no reviews)Product ID: 283196

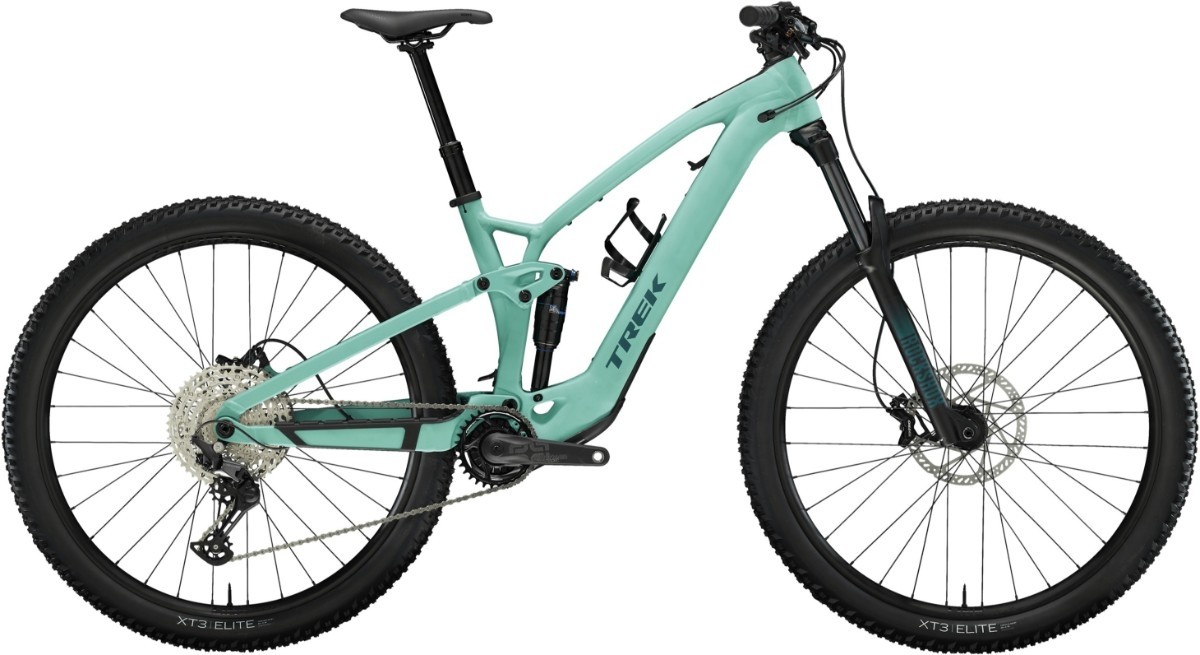

Trek Fuel EXe 5 - Nearly New – L 2025 - Electric Mountain Bike
This Fuel EXe 5 electric bike is rated as an Excellent Grade, which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the slight rust on the chain and cassette, right hand upper stay and on the rear rim near the valve on both sides. There are 5 miles on the odometer.
To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.
TQ-HPR50 – small, quiet, mighty
The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.
Range Extender
Give yourself 40% more range with an optional 160 Wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.
Connect, customise, calculate
The Trek Central app seamlessly connects with your bike for custom motor tuning, activity tracking and more ways to analyse and personalise your ride. You even get navigation features and real-time range calculations.
Removable battery
The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.
Active Braking Pivot
Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.
Slack or steep, the choice is yours
Install angle-adjust headset cups (sold separately) to tweak the head tube angle a degree steeper or slacker to your liking – all without impacting your bottom bracket height.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Alpha Platinum Aluminium, removable battery, internal routing, alloy rocker link, 34.9 mm seat tube, upper chain guide mount, 55 mm chain line, Mino Link, ABP, Boost148, UDH, 140 mm travel |
| Fork | Rockshox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 offset, Boost110, 15 mm Maxle Stealth, 150 mm travel |
| Rear Shock | X-Fusion Pro 2, 2-position damper, 205 mm x 60 mm |
| Stem | Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Bars | Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Front Brake | Tektro HD-M745 4-piston hydraulic disc |
| Rear Brake | Tektro HD-M745 4-piston hydraulic disc |
| Rear Mech | Shimano Deore M6100, long cage |
| Shifters | Shimano Deore M6100, 12-speed |
| Speed | 12 |
| Rims | Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve |
| Front Hub | Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
| Rear Hub | Bontrager alloy, loose bearing, alloy axle, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Front Tyre | Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40" |
| Rear Tyre | Bontrager XT3 Elite, wire bead, 60 tpi, 29 x 2.40" |
| Seat Post | TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm |
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
| Chainset | E*thirteen E*spec Plus, 165 mm length |
| Chain | Shimano Deore M6100, 12-speed |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Battery Size (WH) | TQ 360Wh |
| Motor | TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power |
| User Interface | TQ LED display with Bluetooth & ANT+ connectivity |
Typical Bike Size Chart
|
Height
|
Bike Size
|
Road Bike Size
|
Mountain Bike Size *
|
|
4’8” – 5’1”
143 – 155 cm
|
XXS
|
44 cm
|
13” (33 cm)
|
|
5’1” – 5’4”
155 – 163 cm
|
XS
|
48 cm
|
15” (38 cm)
|
|
5’4” – 5’7”
163 – 170 cm
|
S
|
51 cm
|
16” (41 cm)
|
|
5’7” – 5’10”
170 – 178 cm
|
M
|
54 cm
|
18” (46cm)
|
|
5’10” – 6’0”
178 – 183 cm
|
L
|
56 cm
|
19” (48cm)
|
|
6’0” – 6’3”
183 – 191 cm
|
XL
|
58 cm
|
20” (51 cm)
|
|
6’3” – 6’5”
191 – 196 cm
|
XXL
|
60 cm
|
21” (53 cm)
|
|
6’5” – 6’9”
196 – 205 cm
|
XXXL
|
62 cm
|
22” (56 cm)
|
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimetres for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but are like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the Mountain bike column.
Read our bike size guide for more information on sizing.
