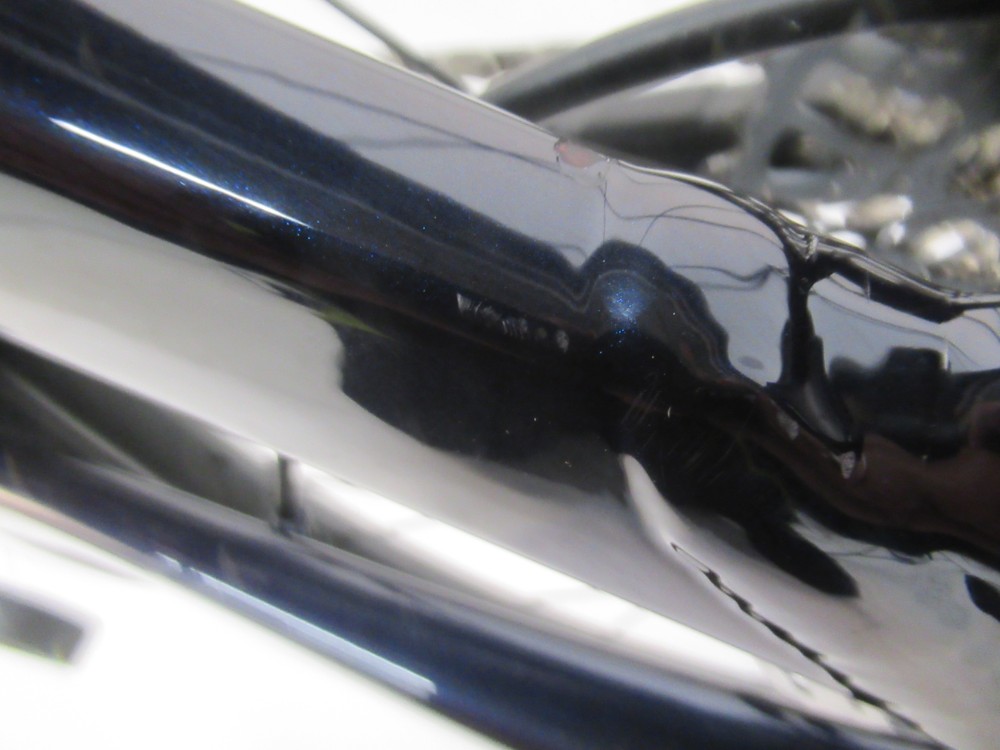

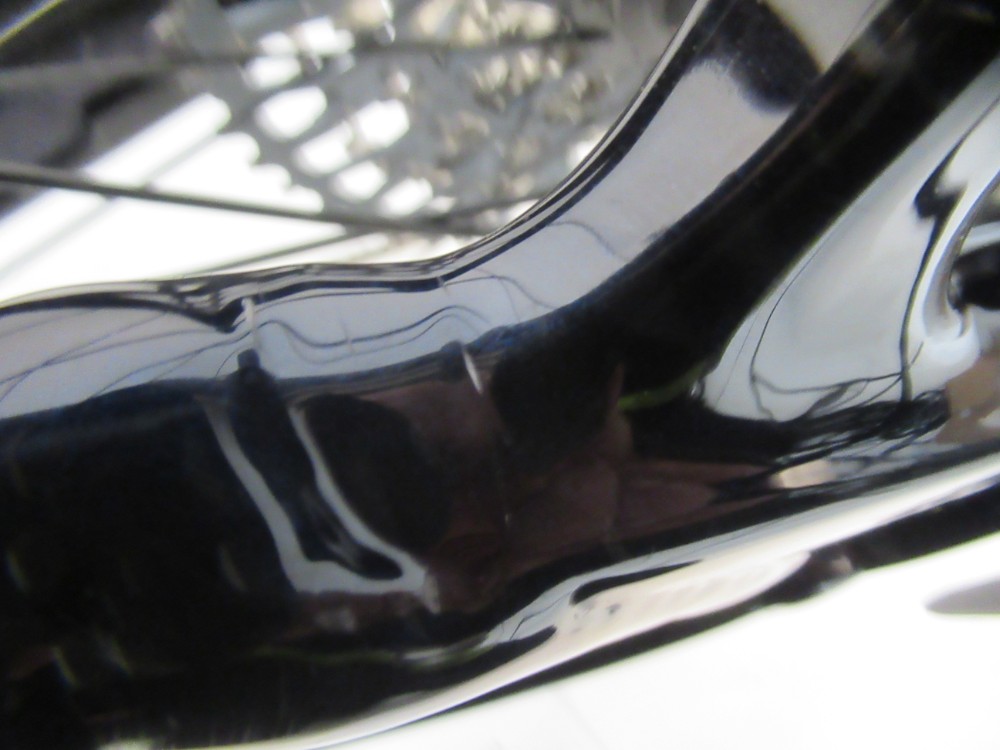

This Fuel EX 8 GX AXS T-Type Gen 6 mountain bike is rated as an Excellent Grade, which reflects that the bike is in very good condition and can be considered to have been 'pre-pedalled'. Having been lightly used, there are some signs of use on the bike. The only minor visible marks are on the top tube, rear brake calliper, near drive side seat stay and head tube.

To ensure this bike meets our high standards for quality, it has undergone a thorough inspection by our professional mechanics. As with all our bikes, it comes with a 12-month Tredz warranty, plus any additional manufacturer warranty which may apply.

The lightweight alloy frame pairs with a upgraded electronic wireless 12-speed SRAM GX Eagle transmission, while a 150 mm FOX Rhythm fork cushions the blow from rocks and roots. In-frame storage and adjustable geometry give you all the perks that the come with the carbon model, but without the lofty price tag.

It's right for you if...

You want a full-suspension trail bike that floats over rough and technical terrain and packs in plusses, like a root-slaying FOX Rhythm fork and tubeless hoops.

The tech you get

A light and stiff alloy frame with 150 mm FOX Rhythm fork with Float EVOL air spring and GRIP damper for small bump compliance, plus a FOX Performance Float X rear shock. SRAM's latest wireless GX Eagle AXS 12-speed transmission for snappy shifting and Tubeless-Ready Bontrager wheels. Plus, adjustable geometry that lets you take control of your set-up.

The final word

For the rider who doesn't want to be limited on the trail, the Fuel EX 8 is ready to handle everything. Its progressive trail geometry is built to keep you charging, and upgraded components are the cherry on top.

Why you'll love it

The Fuel EX Gen 6 gives you 140/150 mm of travel and slack, adjustable geometry for an extra capable ride, plus, in-frame storage on all models – even alloy
You'll get upgraded components where it matters most, with SRAM's latest GX Eagle AXS wireless electronic transmission for the smoothest shifting under load
With the adjustable angle headset (angled cups sold separately) and Mino Link, you can choose from six different geometry configurations
The dropper post lets you lower your saddle on the fly so it's out of the way on descents
We expanded our size range to ensure a better fit for all riders, and use the best-fitting wheels for each frame size: XS frames get 27.5˝ wheels, S frames get to choose between 27.5˝ or 29˝, and sizes M and up get 29˝ wheels

Occasionally, without notice, manufacturers change product design and/or specifications.

Frame	Alpha Platinum Aluminium, internal storage, angle-adjust headset, Mino Link adjustable geometry, magnesium rocker link, 34.9 mm seat tube, ISCG 05, 55 mm chain line, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140 mm travel
Fork	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 150 mm travel
Rear Shock	Fox Performance Float X, 2-position damper, 185 mm x 55 mm
Stem	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Bars	Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
Front Brake	SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
Rear Brake	SRAM DB 8 4-piston hydraulic disc // SRAM DB 8 4-piston hydraulic disc
Rear Mech	SRAM GX Eagle AXS, T-Type
Shifters	SRAM AXS Pod
Speed	12
Rims	Bontrager Line Comp 30
Front Hub	Bontrager Line Comp 30
Rear Hub	Bontrager Line Comp 30
Front Tyre	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Rear Tyre	Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50"
Seat Post	TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Saddle	Bontrager Verse P3, chromoly rails // Bontrager Arvada, hollow chromoly rails, 138 mm width
Chainset	SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
Bottom Bracket	SRAM DUB MTB Wide, 73 m, BSA threaded
Chain	SRAM GX Eagle, T-Type, 12-speed
Cassette	SRAM Eagle XS-1275, T-Type,10-52, 12-speed

Height	Bike Size	Road Bike Size	Mountain Bike Size *
4’8” – 5’1” 143 – 155 cm	XXS	44 cm	13” (33 cm)
5’1” – 5’4” 155 – 163 cm	XS	48 cm	15” (38 cm)
5’4” – 5’7” 163 – 170 cm	S	51 cm	16” (41 cm)
5’7” – 5’10” 170 – 178 cm	M	54 cm	18” (46cm)
5’10” – 6’0” 178 – 183 cm	L	56 cm	19” (48cm)
6’0” – 6’3” 183 – 191 cm	XL	58 cm	20” (51 cm)
6’3” – 6’5” 191 – 196 cm	XXL	60 cm	21” (53 cm)
6’5” – 6’9” 196 – 205 cm	XXXL	62 cm	22” (56 cm)
