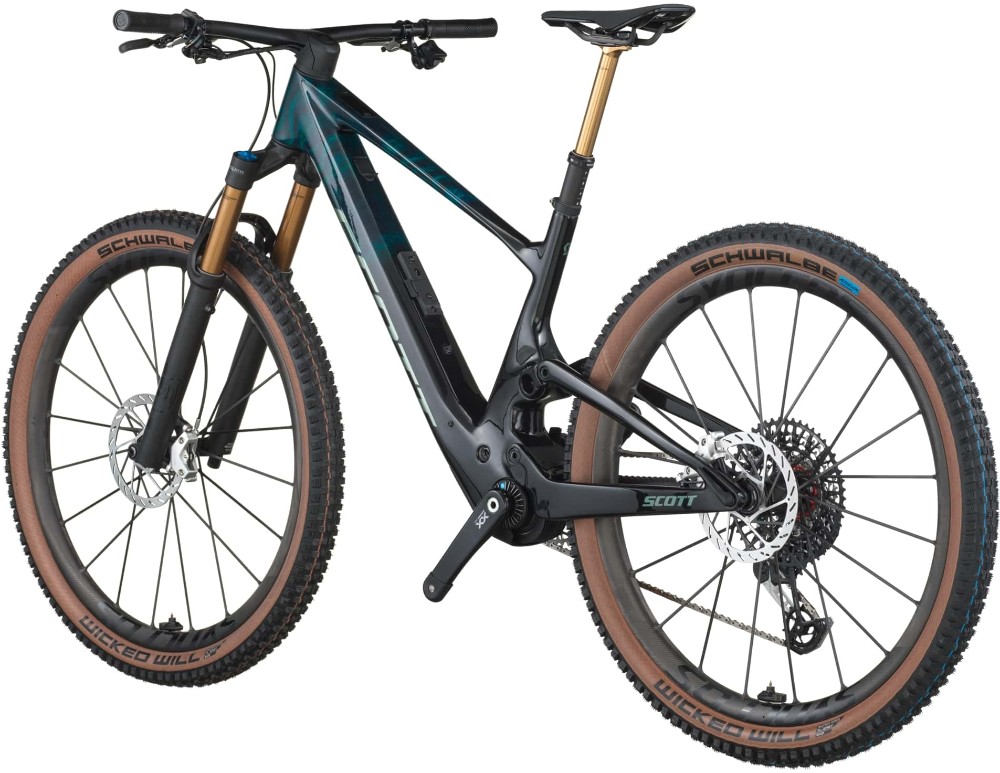

Scott Lumen 900 SL 2026 - Electric Mountain Bike
The extra juice is courtesy of TQ’s new HPR60 motor unit, which boosts torque from 50Nm—as on the previous Lumen 900—to 60Nm of thrust that might make you feel like you’ve got a World Champion’s legs. Typically, that improvement comes at the cost of a heavier system weight, but that’s not the case with the HPR60. It’s the same weight as the outgoing motor drive used on the previous Lumen 900, but 20% stronger.
Energy management and range are also improved with cooling fins and new software that combine to make the drive unit as efficient as its predecessor despite the additional torque. Lumen 900 SL takes your rides far with its 360Wh main battery that can be complemented with the included Range Extender Battery. The small-water-bottle-sized extender attaches with a quick-release mount or easily stows away in a day pack.
This Lumen 900 SL features a brightly illuminated color screen for crisp viewing of your motor and battery performance. We’ve also specced it as your ultimate e-MTB with a 140mm FOX Factory 36 SL fork, custom Scott 130mm integrated shock, SRAM XX Eagle AXS, and Motive Ultimate brakes.
Please note that bike specifications are subject to change without prior notice.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Carbon HMX, Integrated Suspension Technology, Flex Pivot, Adjustable head angle, Syncros Cable Integration System, UDH Interface, 12x148mm with 55mm Chainline |
| Fork | FOX 36SL Factory Air, Kashima Grip SL, 3-Modes with low Speed adj., Kabolt 15x110mm axle, 44mm offset, Tapered steerer, Lockout, Reb. Adj., 140mm travel |
| Rear Shock | FOX NUDE 6T Factory EVOL Trunnion, SCOTT custom w. travel, geo adj., 3 modes: Lockout-Traction Control-Descend, Low Speed Adj., Custom large Air volume, Kashima, Reb. Adj., Bearing Hardware, Travel 130-90-Lockout, T165X45mm |
| Headset | Syncros - Acros Angle adjust & Cable Routing HS System, Stainless, +-0.6° head angle adjustment, ZS56/28.6 – ZS56/40 MTB |
| Bars | Syncros Fraser iC SL DC Carbon, 0° rise, back sweep 8°, mini Rise, 760mm |
| Front Brake | SRAM Motive Ultimate Stealth 4-Piston Disc |
| Rear Brake | SRAM Motive Ultimate Stealth 4-Piston Disc |
| Rear Mech | SRAM XX Eagle AXS Transmission 12 Speed, Wireless Electronic Shift System |
| Shifters | SRAM AXS Pod Rocker Controller |
| Speed | 12 |
| Rims | Syncros Silverton SL2-30 CL full Carbon, F: 15x110mm, R: 12x148mm, 30mm Tubeless ready rim, DT Swiss 240 Ratchet EXP 36, XD Driver, SRAM TyreWiz, Syncros SL Axle w/Removable Lever, with 6mm Allen, T30 and T25 Tools |
| Front Tyre | Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Soft |
| Rear Tyre | Schwalbe Wicked Will 29x2.4" EVO, Super Race, TLE, 67EPI, Addix Speed Grip |
| Seat Post | FOX Transfer Factory Dropper Post Kashima, 31.6mm, S size 125mm, M size 140mm, L ize 150mm, XL size 175mm |
| Saddle | Syncros Tofino Regular 1.0, Carbon rails |
| Chainset | SRAM XX, Carbon |
| Chain | SRAM CN XX Eagle Transmission |
| Cassette | SRAM XX Eagle XS 1297 Transmission 10-52 |
| Battery Size (WH) | TQ Internal 360Wh + Range Extender 160Wh |
| Motor | TQ HPR60 Mid Motor drive 60Nm max Torque, EU: 25kmh, US: 20mph |
| User Interface | TQ HPR Color, Bluetooth, ANT+, Dedicated Smartphone app |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
See our bike size guide for more on bike sizing
