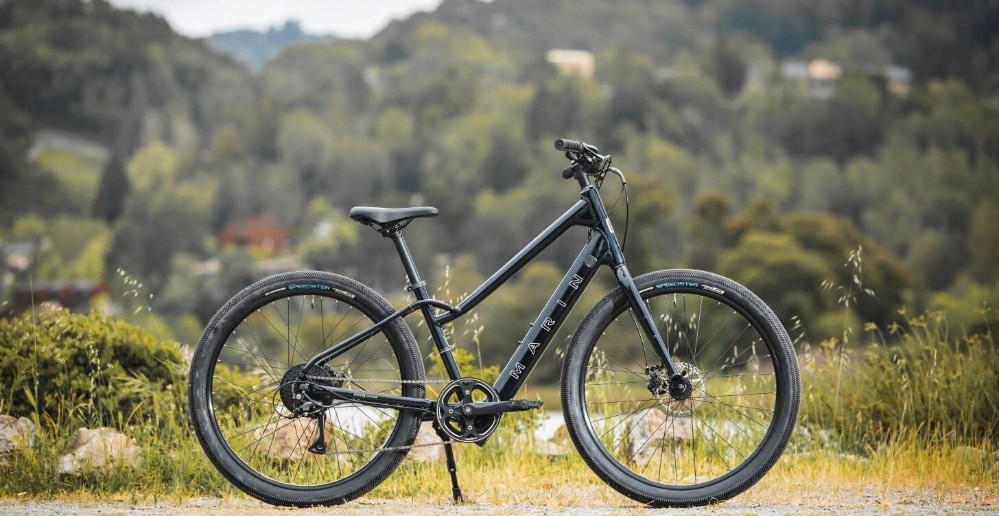

Marin Stinston E 2026 - Electric Hybrid Bike
The Marin Stinson E is built for comfort, stability and stress-free riding. Its low-standover aluminium frame, smooth Bafang rear-hub motor and plush 27.5” tyres make cruising bike paths, neighbourhood streets or gentle hills feel effortless and enjoyable.
Key Features:
- Series 1 6061 alloy comfort frame with low standover geometry
- CrMo steel fork with rack and mudguard eyelets
- Shimano Altus/Acera 8-speed drivetrain for easy shifting
- Tektro MDM280 mechanical disc brakes for controlled stopping
- 27.5" wheels with Vee Speedster 2.35" puncture-protected tyres
- Integrated in-tube battery for clean looks
- Available with 0% APR finance
Drive Information:
- Bafang 250W rear-hub motor, 40Nm torque
- 340Wh in-tube battery
- LCD handlebar display with assist-level control
The Stinson E brings the comfort-first approach of Marin’s popular leisure bikes into the e-bike world. Built around a Series 1 aluminium comfort frame, it offers exceptionally low standover height for easy mounting and dismounting. The geometry is designed to keep you upright and relaxed, perfect for unhurried rides or getting around town without strain. Practical additions, including rack and mudguard mounts and an integrated kickstand plate, make everyday use simple and flexible.
Power comes from a compact Bafang rear-hub motor delivering 40Nm of smooth, predictable assistance. Five support levels allow you to tailor the effort to your ride, from gentle boosts on the flat to more help on short steeper rises. The handlebar-mounted controller doubles as an LCD display for easy access to speed, battery status and assist level. The system also supports the Bafang Go app for ride data, navigation tips and health metrics, adding even more functionality. Hidden neatly inside the downtube, the 340Wh battery keeps the bike tidy and well-balanced, with an accessible charging port protected from the elements.
An 8-speed Shimano drivetrain keeps gearing simple and reliable, ideal for everyday routes. Stopping power comes from Tektro mechanical disc brakes, giving consistent control in mixed weather. The high-volume Vee Speedster 27.5” tyres bring comfort and confidence, with a smooth tread for efficiency and plenty of grip on varied surfaces.
Finished with a supportive Marin Comfort saddle, swept-back bars and ergonomic hand positions, the Stinson E is designed so every ride feels easy from the first pedal stroke. Whether you’re returning to cycling, replacing short car trips or just want a calmer way to get around, the Stinson E helps you enjoy the journey as much as the destination.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Series 1 Comfort, Ebike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts |
| Fork | CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets |
| Headset | FSA, TH No.10P |
| Stem | Marin Alloy |
| Bars | Marin Alloy, 25mm Rise, 18˚ Backsweep |
| Front Brake | Tektro MDM280 Mechanical Disc, 160mm Rotor |
| Rear Brake | Tektro MDM280 Mechanical Disc, 160mm Rotor |
| Brake Lever | Alloy, Long Pull |
| Rear Mech | Shimano Acera, 8-Speed |
| Shifters | Shimano Altus 8-Speed RapidFire |
| Speed | 8 |
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Front Hub | Forged Aluminum Alloy, 32H |
| Rear Hub | Bafang 250 Watt Hub Motor, 40Nm, 36H |
| Spokes | 14G Stainless Steel |
| Front Tyre | Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection |
| Rear Tyre | Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection |
| Seat Post | Marin Alloy, 30.9mm |
| Saddle | Marin Comfort |
| Bottom Bracket | Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | SunRace 8-Speed, 11-34T |
| Pedals | Nylon Platform |
| Battery Size (WH) | Bafang 340Wh, 36V, In-tube |
| Motor | Bafang 250 Watt Hub Motor, 40Nm, 36H |
| User Interface | Handlebar Mount LCD Switch & Display |
Electric Bike Bike Size Chart
|
Height |
e Bike Size |
e Road Bike Size |
e Mountain Bike Size* |
|
4’8” – 5’1” 143 – 155 cm |
XXS |
44 cm |
13” (33 cm) |
|
5’1” – 5’4” 155 – 163 cm |
XS |
48 cm |
15” (38 cm) |
|
5’4” – 5’7” 163 – 170 cm |
S |
51 cm |
16” (41 cm) |
|
5’7” – 5’10” 170 – 178 cm |
M |
54 cm |
18” (46cm) |
|
5’10” – 6’0” 178 – 183 cm |
L |
56 cm |
19” (48cm) |
|
6’0” – 6’3” 183 – 191 cm |
XL |
58 cm |
20” (51 cm) |
|
6’3” – 6’5” 191 – 196 cm |
XXL |
60 cm |
21” (53 cm) |
|
6’5” – 6’9” 196 – 205 cm |
XXXL |
62 cm |
22” (56 cm) |
* Mountain bikes are sized differently to road bikes. Typically, they are sized in inches as the first MTBs were produced in the USA. European brands like Lapierre and Haibike like to use centimeters for all their bikes. The measurements of their mountain bikes doesn’t match their road bikes but is like a simple conversion from the inches measurement. This is why we have included cm measurements in brackets for the e mountain bike column.
