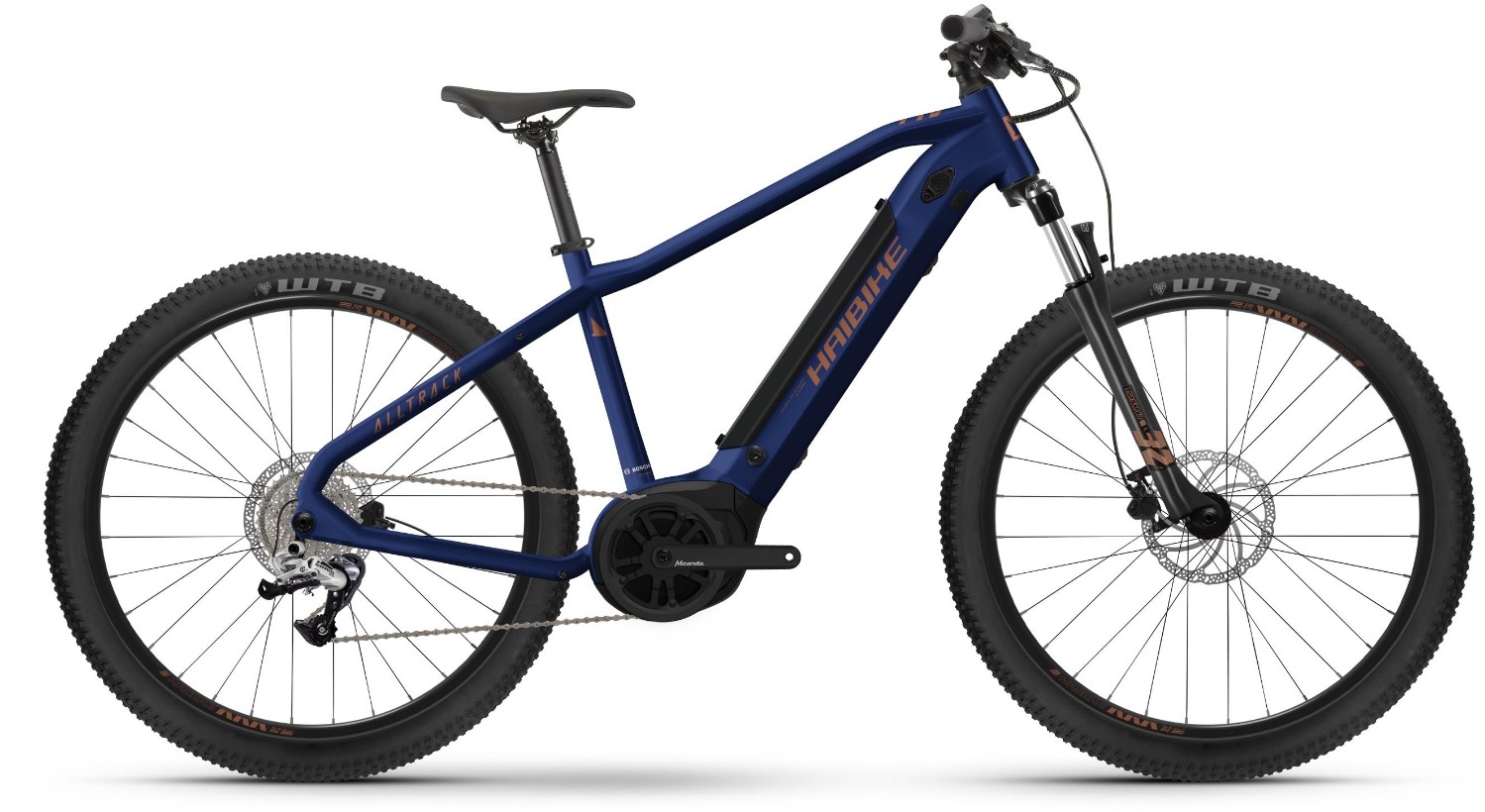

Haibike AllTrack 4 29 2025 - Electric Mountain Bike
The Haibike AllTrack 4 29 is the perfect e-MTB for riders looking to take their off-road adventures to the next level. Powered by the Bosch Performance Line motor, it delivers up to 75Nm of torque, ensuring smooth and powerful assistance for climbing steep trails or cruising along gravel paths. The 500Wh Bosch PowerTube battery is seamlessly integrated into the frame, providing plenty of range for extended rides.
Key Features:
- Frame: Aluminium frame with hardtail geometry, designed for stability and durability.
- Front Suspension: SR Suntour XCM32 Boost DS fork with 120mm travel for smooth control.
- Rear Suspension: N/A – hardtail design for efficient pedalling and lightweight responsiveness.
- Drivetrain: Shimano Alivio 9-speed drivetrain for reliable and precise shifting.
- Brakes: Alhonga HT472 hydraulic disc brakes with 180mm rotors for consistent stopping power.
- Wheels: 29” Schürmann Yak25 rims with WTB Ranger Comp tyres for grip and control.
- Standout Feature: Large 29” wheels for stability and improved rollover capability on technical trails.
- Finance: Available with 0% APR finance.
Drive Information:
- Motor: Bosch Performance Line motor with 75Nm torque for smooth and powerful assistance.
- Battery: Bosch PowerTube 500Wh battery for long-range rides.
- User Interface: Bosch LED Remote for easy assistance level adjustments and system control.
The SR Suntour XCM32 fork with 120mm of travel absorbs bumps with ease, giving you a comfortable ride on rough terrain. The Shimano Alivio 9-speed drivetrain ensures reliable shifting, while the Alhonga hydraulic disc brakes provide dependable stopping power in all weather conditions.
With its 29” wheels and WTB Ranger Comp tyres, the AllTrack 4 offers exceptional stability and traction, making it ideal for rolling over obstacles and tackling varied terrains. Its lightweight yet robust aluminium frame provides a comfortable ride, and the bike is available in multiple sizes to suit a range of riders.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Aluminium |
| Fork | SR Suntour XCM32 Boost DS, steel spring/oil, Travel: 120mm, Aluschaft 1 1/8 - 1 1/2'' tapered, 15 x 110mm thru-axle Boost |
| Headset | A-Head Tapered |
| Stem | XLC A-Head, A-head, Bar bore: 31.8mm |
| Bars | XLC 720mm |
| Front Brake | Alhonga HT472, aluminium, 180mm |
| Rear Brake | Alhonga HT472, aluminium, 180mm |
| Brake Lever | Alhonga HT472, aluminium |
| Rear Mech | Shimano Alivio M3100, 9-speed |
| Shifters | Shimano Alivio M3100, trigger switch |
| Speed | 9 |
| Rims | Schürmann Yak25, eyed, double-walled rim, aluminium |
| Front Hub | Alunabe |
| Rear Hub | Alu Nabe |
| Spokes | Sapim Leader, black |
| Front Tyre | WTB Ranger Comp, 55-622 |
| Rear Tyre | WTB Ranger Comp, 55-622 |
| Seat Post | XLC, patent, 31.6mm, aluminium |
| Saddle | XLC MTB |
| Chainset | steel, 38 |
| Bottom Bracket | Integrated |
| Chain | KMC e9S |
| Cassette | Shimano HG200, 11-36 teeth |
| Pedals | Freeridepedal aluminium, mit Reflektor |
| Battery Size (WH) | Bosch, PowerTube, 500 Wh |
| Motor | Bosch Performance Line 75 Nm 250W . |
| User Interface | Bosch, LED Remote |
Haibike AllTrack Size Chart
|
Size |
Height (cm) |
Height (Inches) |
|
S / 40cm |
160 – 170 |
4’11” – 5’3” |
|
M / 45cm |
170 – 175 |
5’3” – 5’9” |
|
L / 50cm |
175 – 184 |
5’9” – 6’0” |
|
XL / 55cm |
180 - 193 |
5’11” – 6’4” |
What size frame do I need if I am between sizes? - read here
Haibike AllTrack 2025 Geometry Chart
| Size | S 40 | M 45 |
|---|---|---|
| Stack | 624 | 633 |
| Reach | 405 | 437 |
| Head Tube Length | 125 | 135 |
| Head Tube Angle | 65° | 65° |
| Bottom Bracket Drop | 54 | 54 |
| Chainstay Length | 490 | 490 |
| Wheelbase | 1217 | 1253 |
| Top Tube Length (horizontal) | 574 | 610 |
| Seat Tube Length | 400 | 450 |
| Seat Tube Angle | 75° | 75° |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
