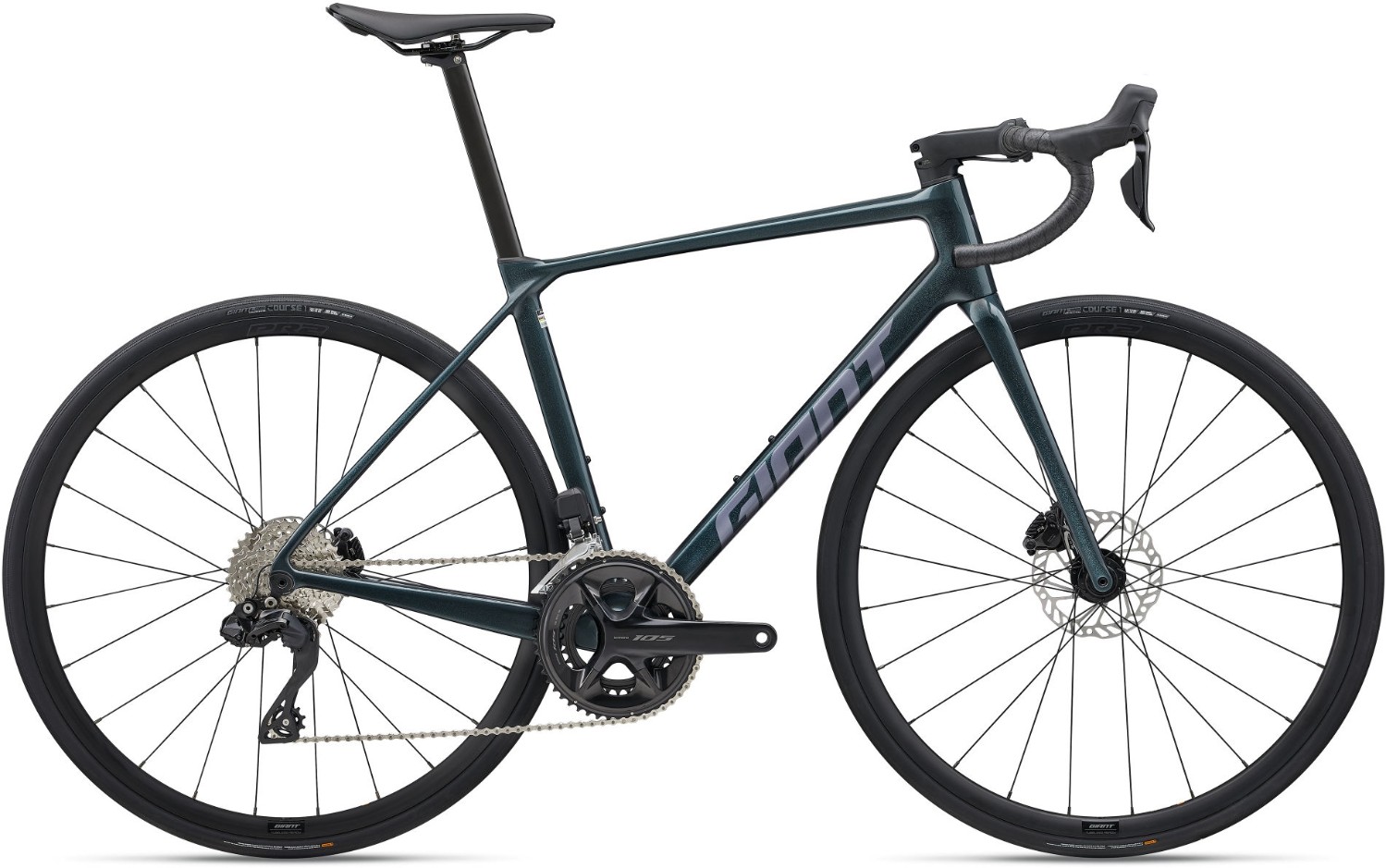

Giant TCR Advanced 1 2025 - Road Bike
The Giant TCR Advanced 1 is designed from Advanced-Grade Composite and featuring an Advanced-Grade Composite fork with Full-Composite OverDrive Steerer, to offer a lightweight and versatile ride. Equipped with the precision of the Shimano 105 Di2 2x12 drivetrain, it guarantees smooth, reliable gear shifts. Shimano 105 hydraulic disc brakes paired with Giant P-R2 Disc wheels ensure impeccable control and speed modulation. The Contact AeroLight stem enhances aerodynamics, and the Variant seatpost provides just enough compliance for a race-tuned feel.
Key Features:
- Frame: Advanced-Grade Composite 12x142mm thru-axle, Disc
- Fork: Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle, Disc
- Drivetrain: Shimano 105 Di2 2x12 for precision and reliability
- Brakes: Shimano 105 hydraulic disc, MPH 160/140mm rotors
- Wheels: Giant P-R2 Disc wheelset, alloy, 22mm inner width
- Standout Feature: Shimano 105 Di2 2x12 drivetrain for a balanced, race-tuned experience
- Finance: Available with 0% APR finance
Integrated aerodynamics, backed by Computational Fluid Dynamics, fine-tunes the tube shapes and cockpit design, resulting in a more streamlined profile for enhanced aero performance.
Occasionally, without notice, manufacturers change product design and/or specifications.
| Frame | Advanced-Grade Composite 12x142mm thru-axle, Disc |
| Fork | Advanced-Grade Composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc |
| Stem | Giant Contact Aerolight |
| Bars | Giant Contact |
| Front Brake | Shimano 105 hydraulic disc, MPH 160/140mm rotors |
| Rear Brake | Shimano 105 hydraulic disc, MPH 160/140mm rotors |
| Brake Lever | Shimano 105 hydraulic disc |
| Front Mech | Shimano 105 Di2 |
| Rear Mech | Shimano 105 Di2 |
| Shifters | Shimano 105 Di2 2x12 |
| Speed | 24 |
| Rims | Giant P-R2 Disc wheelset, alloy, 22mm inner width |
| Front Hub | Giant alloy, 12mm thru-axle |
| Rear Hub | Giant alloy, 12mm thru-axle |
| Spokes | Sapim |
| Front Tyre | Giant Gavia COURSE 1 Tubeless, 700x25c(28mm effective), 60 TPI , Folding |
| Rear Tyre | Giant Gavia COURSE 1 Tubeless, 700x25c(28mm effective), 60 TPI , Folding |
| Seat Post | Giant Variant, composite, -5/+15mm offset |
| Saddle | Giant Approach 7mm Steel Rail, with UniClip / ParticleFlow technology |
| Chainset | Shimano 105, 36/52 |
| Bottom Bracket | Shimano, PressFit 71 |
| Chain | KMC X12L-1 |
| Cassette | Shimano 105, 11x34 |
| Pedals | Resin Platform |
Giant TCR Advanced 2025 Size Chart
|
Size |
Height (cm) |
Height (feet) |
|
XS |
157 - 169 |
5’2” - 5’7” |
|
S |
165 - 175 |
5’5” - 5’9” |
|
M |
171 - 181 |
5’7” - 5’11” |
|
M/L |
177 - 187 |
5’10” - 6’2” |
|
L |
183 - 193 |
6’0” - 6’4” |
|
XL |
189 - 199 |
6’2” - 6’6” |
What size frame do I need if I am between sizes? - read here
Giant TCR Advanced 2025 Geometry Chart
| Size | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Stack | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach | 376 | 383 | 388 | 393 | 402 | 412 |
| Head Tube Length | 120 | 130 | 145 | 165 | 185 | 200 |
| Head Tube Angle | 71.0° | 72.3° | 73.5° | 73.0° | 73.0° | 72.5° |
| Bottom Bracket Drop | 72 | 69.5 | 69.5 | 67 | 67 | 67 |
| Trail | 72 | 64 | 59 | 59 | 59 | 59 |
| Fork Rake/Offset | 45 | 45 | 45 | 45 | 45 | 45 |
| Chainstay Length | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase | 976 | 977 | 980 | 991 | 1006 | 1020 |
| Top Tube Length (horizontal) | 520 | 535 | 550 | 565 | 580 | 600 |
| Standover Height | 703 | 722 | 743 | 771 | 798 | 822 |
| Seat Tube Length | 425 | 445 | 470 | 500 | 530 | 560 |
| Seat Tube Angle | 74.5° | 74.0° | 73.5° | 73.0° | 73.0° | 72.5° |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 | 175 |
| Handlebar Width | 400 | 400 | 420 | 420 | 440 | 440 |
| Stem Length | 80 | 90 | 100 | 110 | 110 | 120 |
| Wheel Size | 700C | 700C | 700C | 700C | 700C | 700C |
All measurements are in mm unless otherwise stated.
The above table shows the standard geometry for the bicycle as shipped, other geometry configurations may be available with certain bikes. Please contact us via Live Chat to find out more.
